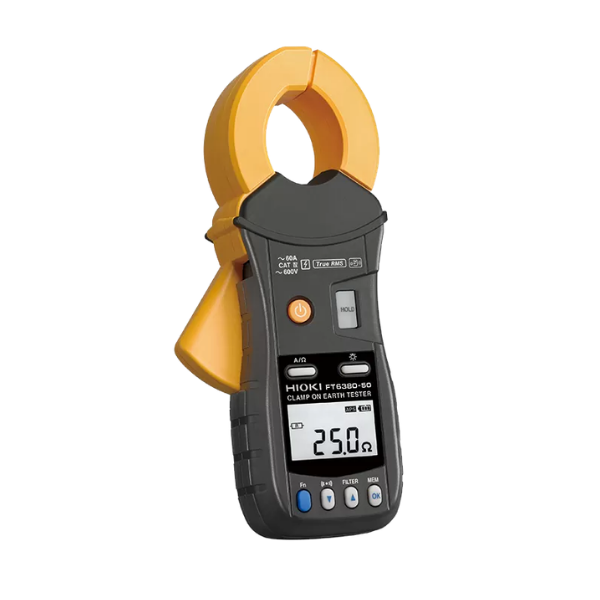

Hioki FT6380-50 Clamp On Earth Tester
Jual HIOKI FT6380-50 Clamp On Earth Tester di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
Hioki FT6380-50 Clamp On Earth Tester
Deskripsi Teknis Tentang Produk Hioki FT6380-50 Clamp On Earth Tester
The FT6380-50 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A.
CAT IV 600 V
Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measure load current up to 60.0 A range
- Clamp at the narrowest point
Spesifikasi Produk Hioki FT6380-50
| MEASUREMENT PRINCIPLE | Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated.Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value. |
| EARTHING RESISTANCE RANGE | 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges Zero suppression: Less than 0.02 Ω Accuracy: ±1.5 % rdg. +0.02 Ω |
| AC CURRENT RANGE | 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges Zero suppression: Less than 0.05 mA Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS) Crest factor: 5.0 or less (for the 60 A range, 1.7 or less) |
| MAXIMUM INPUT CURRENT (CURRENT MEASUREMENT) |
100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz / 60 Hz, requires derating at frequency) |
| MAXIMUM RATED TERMINAL- TO-GROUND VOLTAGE |
600 VAC measurement category IV (anticipated transient overvoltage 8000 V) |
| MEMORY FUNCTION | 2000 data |
| ALARM FUNCTION | For resistance measurement and current measurement, beeps when measured value is less than or greater than threshold. |
| OTHER FUNCTIONS | Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed) |
| DISPLAY | LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec. |
| DUST-PROOF AND WATERPROOF | IP40 (EN60529) with jaws closed |
| POWER SUPPLY | LR6 alkaline battery ×2 |
| CONTINUOUS OPERATING TIME | Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed)Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications) |
| MAXIMUM MEASURABLE CONDUCTOR DIAMETER |
φ 32 mm (1.26 in) |
| DIMENSIONS AND MASS | 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz) |
| ACCESSORIES | Carrying case, Resistance check loop (1 Ω ±2%, 25 Ω ±1%), Strap, LR6 alkaline battery ×2, Instruction manual |
Hioki FT6380-50 Clamp On Earth Tester merupakan solusi praktis untuk pengukuran resistansi grounding pada sistem multi-ground tanpa perlu melepas koneksi atau menggunakan auxiliary ground rod. Dengan metode clamp, pengguna cukup menjepit kabel grounding untuk mendapatkan hasil pengukuran, sehingga proses inspeksi menjadi jauh lebih cepat dan efisien dibanding metode konvensional.
Keunggulan utama alat ini adalah kemampuannya melakukan pengukuran earth resistance sekaligus arus AC (leakage & load current) dalam satu perangkat. Dengan resolusi arus hingga 0.01 mA dan kemampuan pengukuran hingga 60 A, alat ini sangat cocok untuk aplikasi inspeksi sistem grounding di industri, panel listrik, hingga fasilitas kritikal seperti data center dan pabrik.
Desain clamp yang slim (hingga 20 mm) memudahkan penggunaan di area sempit seperti panel atau grounding bar yang padat. Selain itu, teknologi dual-core measurement memastikan hasil yang lebih stabil dan akurat, bahkan pada sistem grounding paralel (multi-grounded system).
Dari sisi efisiensi kerja, perangkat ini juga mendukung penyimpanan data hingga 2.000 titik serta konektivitas Bluetooth (dengan adapter opsional Z3210) untuk integrasi ke aplikasi GENNECT Cross atau export ke Excel. Hal ini sangat membantu dalam proses dokumentasi dan reporting di lapangan. Dengan kombinasi kemudahan penggunaan, kecepatan pengukuran, dan fitur lengkap, Hioki FT6380-50 menjadi solusi ideal untuk maintenance engineer yang membutuhkan pengujian grounding secara cepat tanpa mengganggu operasional.
Informasi Penjualan Produk HIOKI FT6380-50 Clamp On Earth Tester
Bagi Anda yang sedang mencari informasi terkait jual HIOKI FT6380-50 Clamp On Earth Tester maupun referensi harga HIOKI FT6380-50 Clamp On Earth Tester, memahami keunggulan alat ini penting untuk memastikan kesesuaian dengan kebutuhan inspeksi grounding di lapangan. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI FT6380-50 Clamp On Earth Tester lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan pengujian grounding system
- Rekomendasi alat sesuai aplikasi lapangan
- Demo produk & pembuktian performa
- Training penggunaan serta after-sales support
