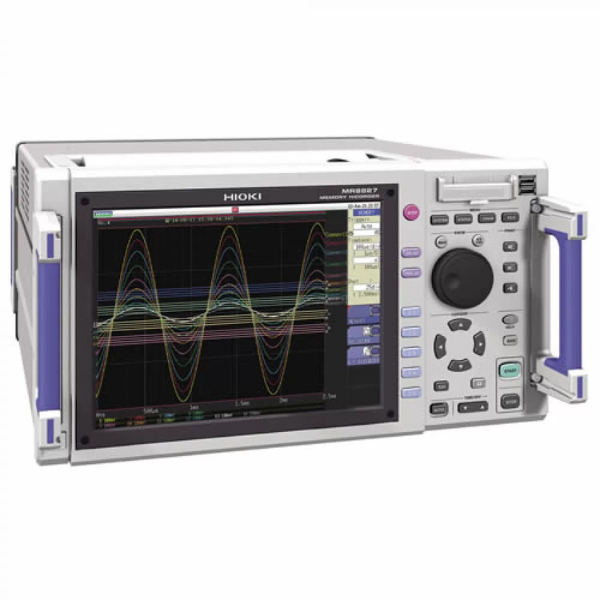

HIOKI MR8827 Memory Hicorder
Jual HIOKI MR8827 Memory Hicorder di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
HIOKI MR8827 Memory Hicorder
Deskripsi Teknis Tentang Produk Hioki MR8827 Memory Hicorder
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. More than just a digital oscilloscope, the MR8827 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as trial runs after the scheduled maintenance of railway cars to verify for voltage command signals, motor current, car speed, and brake pressure.
Key Features
• Generate and record waveforms with a single unit
• Output previously recorded problematic waveforms and apply to devices under test to simulate potential issues
• 32 analog + 32 logic channels to 28 analog + 64 logic channels
• High-speed sampling up to 20MS/s with fully isolated inputs
• Safe measurement with all isolated analog inputs
• Large capacity memory of total 512M-words
• Measure various system signals from high voltage to ultra low voltage simultaneously
Spesifikasi Lengkap Tentang Produk Hioki MR8827 Memory Hicorder
| Parameter | Spesifikasi |
|---|---|
| Max. Number of Channels | 32 ch analog + 32 ch logic, atau 28 ch analog + 64 ch logic (when used with built-in logic input + plug-in logic unit 8973 ×2) |
| Number of Slots | 16 slots (Max. 16) |
| Number of Logic Channels | 32 ch logic (logic probe terminal GND shares a common GND with chassis). Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10.[Limitation on using built-in logic input] (with logic measurement ON)
|
| Measurement Ranges (20 div full scale) | Analog Unit 8966: 5 mV/div to 20 V/div, 12 ranges, resolution: 1/100 of range (12-bit A/D) High Resolution Unit 8968: 5 mV/div to 20 V/div, 12 ranges, resolution: 1/1600 of range (16-bit A/D) |
| Max. Allowable Input | 400 V DC (using the 8966 / 8968) |
| Frequency Characteristics | DC to 5 MHz (-3 dB, using the 8966) DC to 100 kHz (-3 dB, using the 8968) |
| Time Axis (Memory Function) | 5 μs to 5 min/div, 26 ranges, at 100 points/div resolution |
| Measurement Functions | Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT |
| Other Functions | Numerical calculation, Waveform processing, Waveform judgment (Memory or FFT function) |
| Memory Capacity | 128 M-words/ch (using 4 analog channels) to 16 M-words/ch (using 32 analog channels) Total capacity: 512 MW memory |
| Data Storage Media | USB memory stick, CF card, Built-in SSD unit (option, 128 GB) *Approx. 125 sec when saving 100 MB of data *100 MB data can record approx. 16,000 div waveforms across 32 channels |
| Printing | [Built-in A4-size printer option] 216 mm × 30 m thermal paper roll Recording speed: Max. 50 mm/s |
| Display | 10.4-inch TFT color LCD (SVGA, 800 × 600 dots) |
| External Interfaces | LAN: 100BASE-TX USB 2.0 Series A ×2 (USB memory, mouse) USB 2.0 Series B ×1 (PC communication, mass storage) |
| Power Supply | 100 to 240 V AC, 50/60 Hz (220 VA max., 350 VA max. when using printer) |
| Dimensions and Mass | 401 mm (W) × 233 mm (H) × 388 mm (D) (excluding protruding parts except handle) 12.6 kg (main unit only) |
| Accessories | Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit) |
Hioki MR8827 Memory HiCorder merupakan high-speed waveform recorder portable yang dirancang untuk menangkap dan menganalisis fenomena listrik secara detail, terutama pada kejadian transient, drop voltage, hingga gangguan sistem yang sulit terdeteksi dengan alat ukur konvensional. Dengan kemampuan sampling tinggi hingga 20 MS/s, alat ini mampu merekam perubahan sinyal secara real-time dengan resolusi tinggi.
Keunggulan utama dari perangkat ini adalah desainnya yang portable namun tetap powerful, sehingga sangat fleksibel digunakan baik di lapangan maupun di laboratorium. Dilengkapi dengan isolasi antar channel, alat ini memastikan pengukuran tetap aman dan akurat, bahkan saat mengukur beberapa titik dengan potensi berbeda dalam sistem listrik yang kompleks.
Hioki MR8827 mendukung berbagai jenis input seperti tegangan, arus (dengan sensor), hingga sinyal logika, sehingga dapat digunakan untuk berbagai aplikasi seperti analisis inverter, motor drive, power electronics, hingga troubleshooting sistem distribusi listrik.
Fitur advanced trigger memungkinkan pengguna menangkap event spesifik seperti spike, sag, atau transient secara otomatis, sementara fungsi analisis seperti FFT, RMS, dan waveform comparison membantu dalam memahami karakteristik gangguan secara lebih mendalam. Selain itu, data dapat disimpan ke berbagai media seperti SD card atau USB, memudahkan dokumentasi dan analisis lanjutan. Dengan kombinasi high-speed acquisition, fleksibilitas input, dan desain portable, Hioki MR8827 menjadi solusi ideal untuk:
- Analisis transient & gangguan listrik
- Evaluasi performa inverter & motor drive
- Troubleshooting sistem kelistrikan kompleks
- Pengujian sinyal pada power electronics
Informasi Penjualan Produk HIOKI MR8827 Memory Hicorder
Bagi Anda yang sedang mencari informasi terkait jual HIOKI MR8827 Memory HiCorder maupun referensi harga HIOKI MR8827 Memory HiCorder, memahami kemampuan alat ini sangat penting untuk memastikan kesesuaian dengan kebutuhan analisis sinyal berkecepatan tinggi Anda. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI MR8827 Memory HiCorder lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan waveform recording & transient analysis
- Rekomendasi sensor & konfigurasi channel sesuai aplikasi
- Demo produk & pembuktian performa langsung
- Integrasi ke sistem R&D maupun industrial testing
