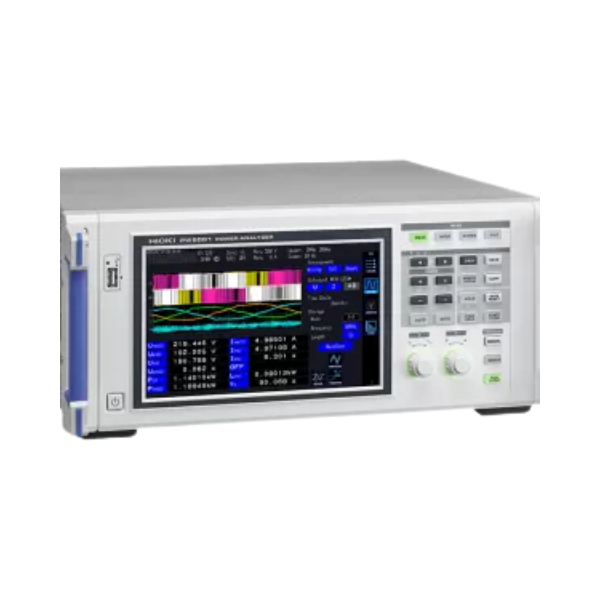

HIOKI PW6001 Power Analyzer
Jual HIOKI PW6001 Power Analyzer di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
HIOKI PW6001 Power Analyzer
Deskripsi Teknis Tentang Produk Hioki PW6001 Power Analyzer
DC, 0.1 Hz to 2 MHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis. Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW6001 is Hioki’s flagship power analyzer, featuring high accuracy, wide band, and high stability for measuring electrical power from DC to inverter frequencies, providing maximum of 12 channels (*1) to support single- and three-phase inverter motor system measurements and next generation devices such as silicon-carbide (SiC) inverters.
- Exclusive current sensor phase shift function lets you maintain accuracy even in high frequency, low power factor applications
- Basic accuracy of ±0.02% (*2) for power measurement
- High noise resistance and stability (80 dB/100 kHz CMRR, ±0.01%/°C temperature characteristics)
- Accurate measurement even when the load is characterized by large fluctuations; TrueHD 18-bit resolution
- 10 ms data refresh while maintaining maximum accuracy (*3)
- DC accuracy of ±0.07%, which is key for stable, accurate efficiency measurement
- Wide frequency bandwidth of DC, or 0.1 Hz to 2 MHz
- Achieve true frequency analysis with high-speed 5MS/s sampling (18 bit)
- Synchronize 2 units for up to 12 channels (*4) in real time
- Special triggers to enable waveform analysis and motor analysis without the need for an oscilloscope
- Wideband harmonic analysis up to the 100th order with a 1.5 MHz band
- Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later
Spesifikasi Produk Hioki PW6001
| MEASUREMENT LINE TYPE | Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire |
| NUMBER OF INPUT CHANNELS | Max. 6 channels; each input unit provides 1 channel for simultaneous voltage and current input
Voltage measurement unit: Photoisolated input, resistance voltage divider |
| MEASUREMENT ITEMS | Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)Harmonic measurement: Harmonic active power, select calculation order from 2nd order to 100th orderWaveform recording: Voltage and current waveforms Motor pulse: Always 5 MS/s Motor waveforms: Always 50 kS/s, 16 bits Recording capacity: 1 Mword × ((voltage + current) × number of channels + motor waveforms)Motor analysis (PW6001-11 to -16 only): Voltage, Torque, Rotation, Frequency, Slip, or Motor output |
| MEASUREMENT RANGE | Voltage range: 6 to 1500 V, 8 ranges Current range (Probe 1): 400 mA to 1 kA (depends on current sensor) Current range (Probe 2): 100 mA to 50 kA (depends on current sensor) Power range: 2.40000 W to 4.50000 MW Frequency range: 0.1 Hz to 2 MHz |
| BASIC ACCURACY | Voltage: ±0.02 % rdg. ±0.02 % f.s. Current: ±0.02 % rdg. ±0.02 % f.s. + current sensor accuracy Active power: ±0.02 % rdg. ±0.03 % f.s. + current sensor accuracy |
| SYNCHRONIZATION FREQUENCY RANGE | Power measurement: 0.1 Hz to 2 MHz Harmonic measurement: 45 Hz to 66 Hz (IEC standard mode), 0.1 Hz to 300 kHz (Wideband mode) |
| FREQUENCY BAND | DC, 0.1 Hz to 2 MHz |
| DATA UPDATE RATE | Power measurement: 10 ms / 50 ms / 200 ms Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode) |
| DATA SAVE INTERVAL | OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes User-selected from all measured values, including harmonic measured values Specified measured values can be saved in internal memory or USB flash drive |
| EXTERNAL INTERFACES | USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control, Synchronization control |
| LOGGER CONNECTIVITY | Sends measured values wirelessly via Bluetooth® serial conversion adapter (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later |
| POWER SUPPLY | 100 to 240 V AC, 50/60 Hz, 200 VA max |
| DIMENSIONS AND MASS | 430 mm (16.93 in) W × 177 mm (6.97 in) H × 450 mm (17.72 in) D, 14 kg (PW6001-16) |
| INCLUDED ACCESSORIES | Instruction Manual ×1, Power cord ×1, D-sub connector ×1 (PW6001-1x only)
|
Hioki PW6001 Power Analyzer merupakan instrumen pengukuran daya presisi tinggi yang dirancang untuk kebutuhan analisis efisiensi dan performa sistem power electronics, seperti inverter, motor drive, EV system, hingga renewable energy. Dengan akurasi tinggi hingga ±0.05%, alat ini mampu memberikan hasil pengukuran yang stabil dan reliable, bahkan pada kondisi pengujian yang kompleks.
Keunggulan utama dari perangkat ini adalah kemampuannya dalam melakukan pengukuran multi-channel secara simultan, yang memungkinkan analisis lengkap pada sistem 3-phase hingga multi-motor setup. Hal ini sangat penting dalam pengujian efisiensi, di mana input dan output power harus dianalisis secara bersamaan untuk mendapatkan hasil yang akurat.
Dari sisi performa, Hioki PW6001 memiliki bandwidth pengukuran yang luas serta kemampuan menangani sinyal dari DC hingga high-frequency switching, menjadikannya sangat relevan untuk aplikasi modern seperti inverter berbasis SiC/GaN. Selain itu, fitur high noise immunity (CMRR tinggi) memastikan hasil pengukuran tetap akurat meskipun di lingkungan dengan interferensi tinggi.
Fitur analisis lanjutan seperti harmonic analysis, FFT, hingga motor analysis memungkinkan engineer mendapatkan insight mendalam terhadap performa sistem, termasuk identifikasi losses, efisiensi, dan karakteristik beban. Ditambah dengan dukungan berbagai jenis sensor (current sensor, voltage input, hingga torque & speed integration), alat ini memberikan fleksibilitas tinggi untuk berbagai skenario pengujian.
Selain itu, Hioki PW6001 juga mendukung data logging dan komunikasi ke PC, sehingga memudahkan proses dokumentasi, analisis lanjutan, serta integrasi ke sistem pengujian otomatis di lingkungan R&D maupun production test bench. Dengan kombinasi akurasi tinggi, fleksibilitas, dan kemampuan analisis mendalam, Hioki PW6001 menjadi solusi ideal bagi engineer yang membutuhkan pengukuran daya dengan standar profesional untuk pengembangan dan validasi sistem listrik modern.
Informasi Penjualan Produk Hioki PW6001 Power Analyzer
Bagi Anda yang sedang mencari informasi terkait jual HIOKI PW6001 Power Analyzer maupun referensi harga HIOKI PW6001 Power Analyzer, memahami kapabilitas alat ini sangat penting untuk memastikan kesesuaian dengan kebutuhan pengukuran daya dan efisiensi sistem Anda. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI PW6001 Power Analyzer lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan power measurement & efficiency testing
- Rekomendasi konfigurasi channel & sensor sesuai aplikasi
- Demo produk & pembuktian performa langsung
- Integrasi ke sistem R&D maupun automated test system
