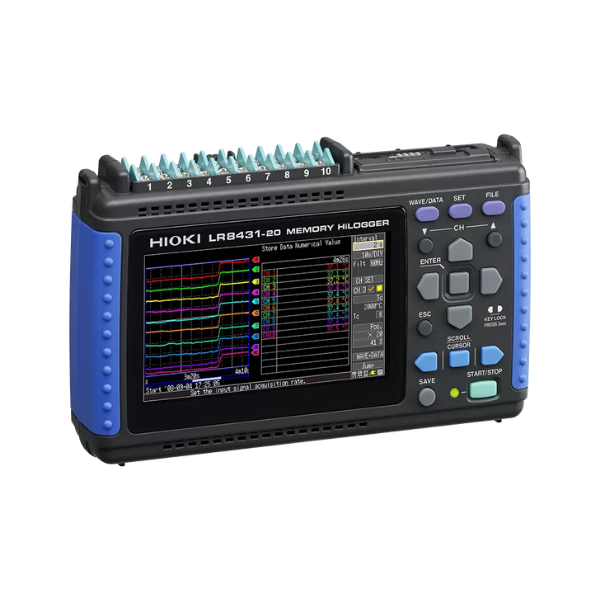

HIOKI LR8431 Memory Hilogger
Jual HIOKI LR8431 Memory Hilogger di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
HIOKI LR8431 Memory Hilogger
Deskripsi Teknis Produk Hioki LR8431 Memory Hilogger
Featuring USB Flash Drive and Improved Accuracy! Your Personal 10-channel Logger. Hioki Memory HiLoggers are high-speed data loggers for recording multiple chanels of voltage, temperature, pulse or rotation signals, providing complete isolation between channels and strong noise resistance . The LR8431 logs data at 10ms speeds across 10 channels simultaneously, and features a bright color LCD for crystal clear waveform displays.
- Record measurement data on a USB flash drive for easy transfer to a computer
- Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
- Replace storage media during real-time recording
- Improved thermocouple measurement accuracy and reference junction compensation accuracy
- Ten isolated analog input channels
- 10 ms sampling and recording across all channels
- Noise-resistant measurement circuitry for improved readings
- Ultra-compact for convenient portability
- Widescreen, bright LCD gives excellent viewability
Spesifikasi Produk Hioki LR8431 Memory Hilogger
| Parameter | Spesifikasi |
|---|---|
| Number of Channels | Analog: 10 isolated channels using scanning input method (M3 mm dia. screw terminal block) Pulse: 4 channels (all pulse inputs share common ground with the main unit) |
| Measurement Parameters | Voltage: ±100 mV to ±60 V, 1–5 V f.s., 6 ranges, max. resolution 5 μV Temperature (thermocouples): −200 °C to 1800 °C (depends on sensor), 1 range (K, J, E, T, N, R, S, B), max. resolution 0.1 °C Temperature (Pt100 sensor): Not available Humidity: Not available Totalized pulses: 0 to 1000 M pulse, 1 range (no-voltage “a” contact, open collector, or voltage input), max. resolution 1 pulse Rotation count: 0 to 5000/n (r/s) f.s., 1 range (no-voltage “a” contact, open collector, or voltage input), resolution 1/n (r/s) Note: n = pulses per rotation (1 to 1,000) |
| Max. Allowable Input | DC 60 V (analog input), DC −5 V to 10 V (pulse input) |
| Max. Rated Voltage to Earth | AC 30 Vrms, DC 60 V (upper limit voltage that does not cause damage when applied between input channel and chassis, and between each input channel) |
| Recording Intervals | 10 ms to 1 hour, 19 selections (all input channels are scanned within each recording interval) |
| Selectable Filters | 50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels) |
| Memory Capacity | Internal storage: 3.5 M-words External storage: CF card or USB memory stick (only HIOKI CF card is guaranteed for correct operation) |
| External Interface | USB 2.0 mini-B receptacle ×1 Functions: Control from PC, transfer files from installed CF card to PC (cannot transfer files from connected USB memory stick to PC via USB communication), data copy between CF card and USB memory stick |
| Display | 4.3-inch WQVGA TFT color LCD (480 × 272 dots) |
| Functions | Save data to CF card or USB memory stick in real time, numerical calculations, etc. |
| Power Supply | AC adapter Z1005: 100 to 240 V AC (50/60 Hz) Battery pack 9780: continuous use approx. 2.5 hours 12 V DC supply: 10 to 16 V (please contact HIOKI distributor for cable; less than 3 m / 9.84 ft cable length) |
| Dimensions and Mass | 176 mm (W) × 101 mm (H) × 41 mm (D), 550 g (battery pack 9780 not installed) |
| Accessories | Measurement Guide ×1, CD-R (Instruction Manual PDF, Logger Utility Instruction Manual PDF, Data acquisition application program Logger Utility) ×1, USB cable ×1, AC adapter Z1005 ×1 |
Hioki LR8431 Memory HiLogger merupakan solusi data logging portable yang dirancang untuk pengukuran multi-parameter secara simultan dengan ukuran yang ringkas namun tetap powerful. Dengan 10 channel analog terisolasi, alat ini mampu mengukur berbagai parameter seperti tegangan, temperatur (thermocouple), pulse, hingga rotation speed dalam satu perangkat—menjadikannya ideal untuk aplikasi industri maupun R&D.
Salah satu keunggulan utama dari perangkat ini adalah kemampuan sampling hingga 10 ms pada semua channel secara bersamaan, sehingga mampu menangkap perubahan data yang cepat seperti fluktuasi beban atau respon sistem dinamis. Hal ini sangat penting dalam pengujian aplikasi seperti motor, inverter, hingga sistem EV.
Selain itu, Hioki LR8431 memiliki desain isolasi antar channel, yang memastikan pengukuran tetap aman dan akurat meskipun mengukur berbagai sinyal dengan potensi berbeda secara bersamaan. Fitur ini juga membantu mengurangi noise dan meningkatkan stabilitas hasil pengukuran, terutama di lingkungan industri yang penuh interferensi.
Dari sisi kemudahan penggunaan, alat ini dilengkapi dengan layar LCD berwarna, penyimpanan data langsung ke USB flash drive atau CF card, serta kemampuan hot-swap media saat recording berlangsung. Hal ini sangat membantu untuk pengukuran jangka panjang tanpa harus menghentikan proses logging. Dengan kombinasi compact size, multi-channel capability, dan high-speed logging, Hioki LR8431 menjadi solusi ideal untuk:
- Monitoring temperatur & performa komponen elektronik
- Evaluasi sistem motor & inverter
- Data acquisition di lab dan production line
- Pengujian efisiensi sistem HVAC & energi
Informasi Penjualan Produk HIOKI LR8431 Memory Hilogger
Bagi Anda yang sedang mencari informasi terkait jual HIOKI LR8431 Memory HiLogger maupun referensi harga HIOKI LR8431 Memory HiLogger, memahami fleksibilitas dan kemampuan alat ini sangat penting untuk memastikan kesesuaian dengan kebutuhan data logging Anda. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI LR8431 Memory HiLogger lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan data logging & measurement system
- Rekomendasi sensor & konfigurasi sesuai aplikasi
- Demo produk & pembuktian performa langsung
- Training penggunaan serta after-sales support
