HIKMICRO SP40H Thermal Imaging Camera
Jual HIKMicro SP40H Thermal Imaging Camera di Indonesia. Hubungi kontak kami untuk presentasi penjelasan lebih lanjut mengenai produk HIKMicro ini.
SP40H Thermal Imaging Camera
The HIKMICRO SP40H high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO SP40H has a high sensitivity (NETD < 30 mK) and high resolution (480 × 360) HIKMICRO VOx detector, and the temperature calibration is up to 2200°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and
1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
Key Feature
- Thermal resolution: 480 × 360 (172,800 pixels),NETD : < 30 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -40°C to 2200°C (-40°F to 3992°F)
- Accuracy: (±1°C (±1.8°F): 0 to 100°C (32 to 212°F); ±1%: 100 to 150°C (212 to 302°F))
- The 90° rotating screen and the 180° rotating lens design
- 1024 x 768 OLED electronic viewfinder and auto-brightness 5-inch color LCD display
- x to 12.x continuous digital zoom
- Manual, automatic, and 1-Tap Level and Span
- 25 Hz image frequency
- Up to 4 hours continuous running
Specification
| Infrared Image | |
| IR Resolution | 480 × 360 (172,800 pixels) |
| SuperIR | 960 x 720 (691,200 pixels) |
| NETD | < 30 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Spectral Range | 7.5 to 14 μm |
| Detector Pitch | 17 μm |
| F-number | L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 |
| Focal Length | L6: 77.4 mm; L9: 51.4 mm; L19: 25 mm; L37: 12.6 mm |
| Field of View (FOV) | L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° |
| Spatial Resolution (IFOV) | L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.68 mrad; L37: 1.35 mrad |
| Min. Focus Distance | L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.2 m (0.65 ft); L37: 0.2 m (0.65 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 1 second |
|
Image Display |
|
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 1280 × 720 Resolution, 5” LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.x to 12.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
|
Measurement and Analysis |
|
| Object Temperature Range | -40°C to 2200°C (-40°F to 3992°F) |
| Accuracy | ±1°C (±1.8°F): 0 to 100°C (32 to 212°F); ±1%: 100 to 150°C (212 to 302°F); ±2°C
(±3.6°F): -40 to 0°C (-40 to 32°F); ±2%: 150 to 2200°C (302 to 3992°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot
User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes |
|
Data Storage and Communication |
|
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds;
Text note: max. 200 characters |
| Video Storage Capacity | Approx. 64 hours |
| Video File Format | MP4 video
and radiometric video |
|
General |
|
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| Laser Distance Meter | Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft). |
| GPS ＆ Compass | Yes |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes |
| Programmable Buttons | 2 |
| Protection Level | IP54, IEC 60529 |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Vibration | 2 g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 1451 g (3.2 lb) |
| Dimension | 204.7 × 141.03 × 87.8 mm (8.06 × 5.55 × 3.45 in) |
| Tripod Mounting | UNC ¼”-20 |
| LED Light | Yes |

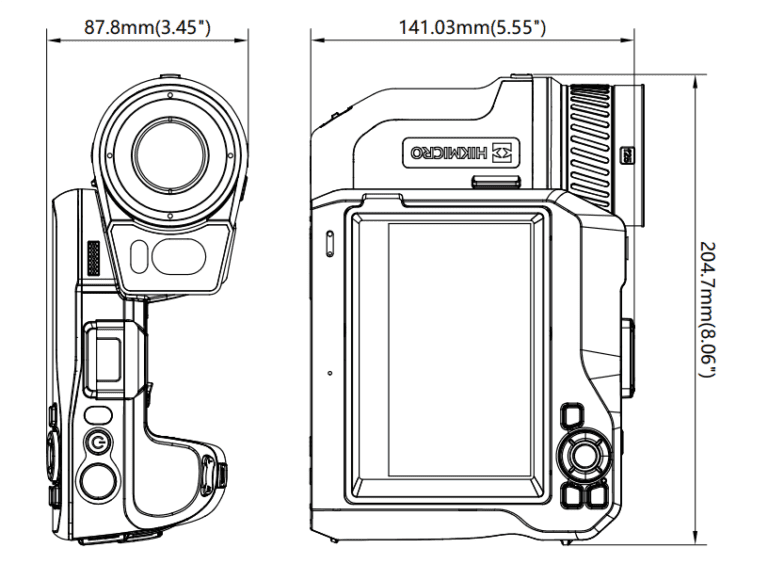

Dimension
HIKMICRO Thermal Imaging Camera
Dapatkan informasi lengkap sebelum membeli produk Thermal Imaging Camera dari HIKMICRO. EMS Technology sebagai distributor resmi HIKMICRO di Indonesia menyediakan berbagai pilihan kamera thermal, termasuk seri SP40H, untuk mendukung kebutuhan inspeksi Anda.
Thermal imager merupakan alat penting bagi engineer, khususnya di bidang maintenance, untuk mendeteksi anomali pada peralatan secara cepat dan akurat tanpa perlu menghentikan operasional.
Kami menawarkan berbagai solusi thermography dengan harga yang kompetitif. Silakan pelajari spesifikasi, katalog, dan pilihan produk HIKMICRO Thermal Imager melalui halaman ini untuk menemukan solusi yang sesuai dengan kebutuhan Anda.
Informasi Penjualan Produk Hikmicro SP40H Thermal Imaging Camera
Dapatkan informasi penjualan HIKMICRO SP40H Thermal Imaging Camera dengan menghubungi tim kami untuk permintaan penawaran harga (quotation) maupun konsultasi produk. Kami juga menyediakan sesi presentasi untuk membantu Anda memahami fitur dan aplikasi produk secara lebih mendalam.
Untuk mengetahui harga HIKMICRO thermal imaging, silakan kirimkan permintaan melalui email ke tim sales kami. Seluruh produk yang didistribusikan oleh EMS Technology merupakan produk resmi dari HIKMICRO.
Jika Anda membutuhkan penjelasan lebih lanjut atau ingin menjadwalkan kunjungan tim sales, kami siap membantu Anda menemukan solusi thermal imaging yang sesuai dengan kebutuhan Anda.
